How Slurry Pumps Support 400-Ton Haul Truck Operations in Open-Pit Mines

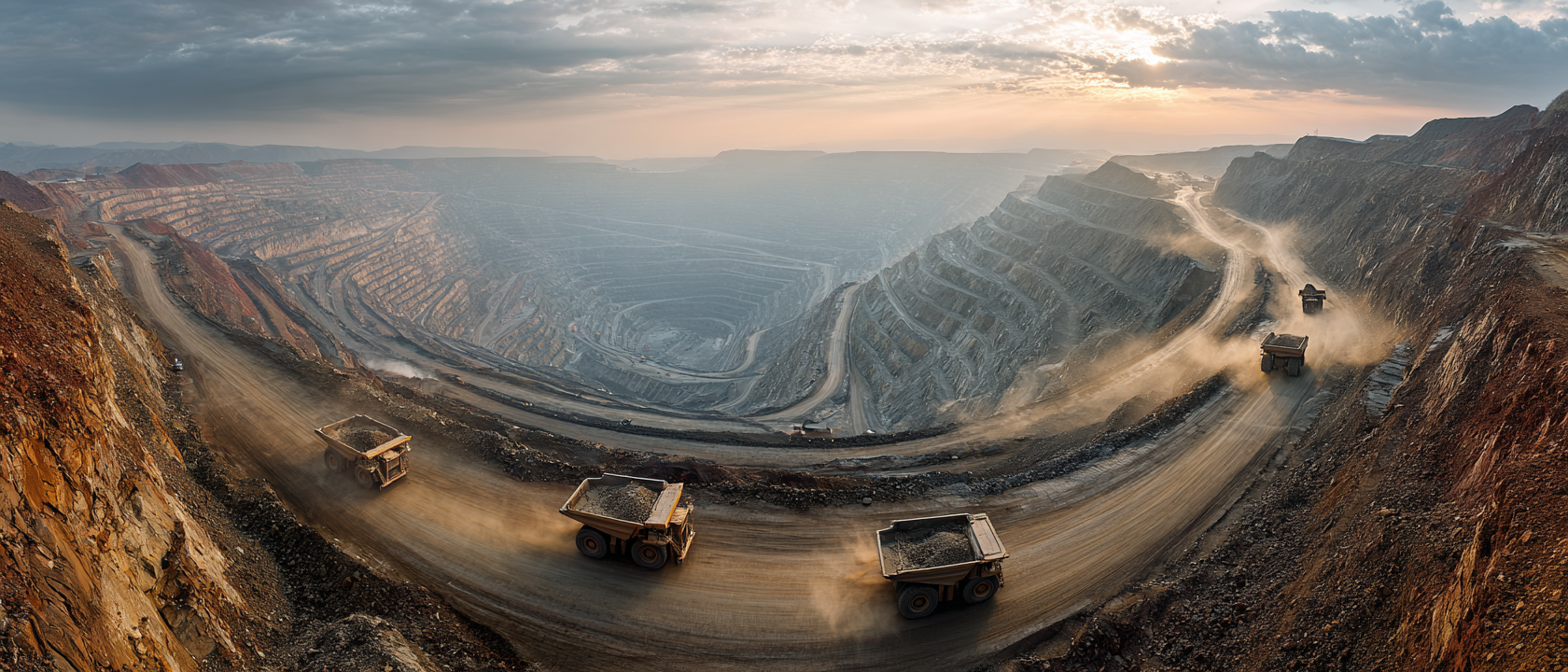

Ultra-class haul trucks navigate the terraced roads of a large-scale open-pit mine — an environment where slurry pumps work around the clock.

The Scale of Modern Mining

When you see a 400-ton haul truck thundering down a haul road, kicking up dust as it carries hundreds of tons of ore, it's easy to focus on the truck itself. But behind every successful mining operation is a network of slurry pumps working tirelessly beneath the surface — keeping pit floors dry, tailings moving, and equipment cool.

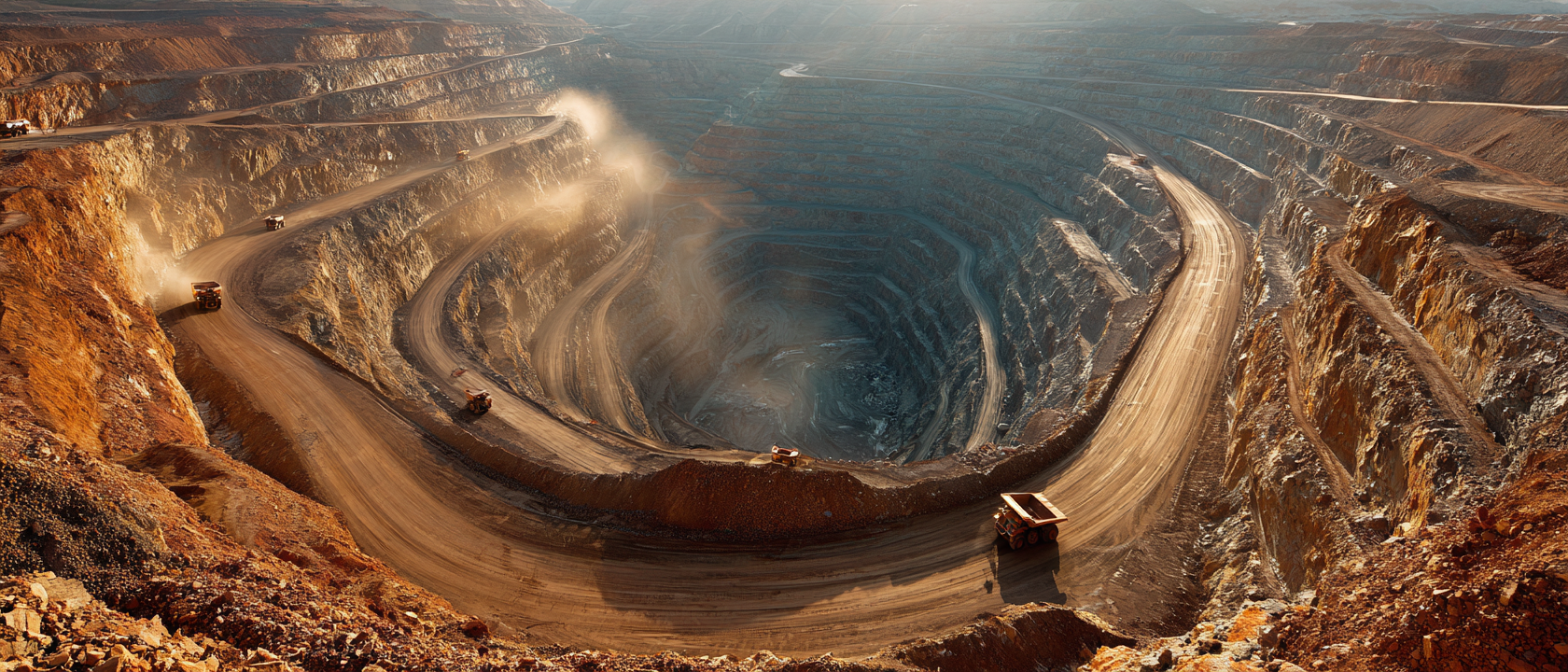

Fleet operations in open-pit mines depend on continuous dewatering to keep haul roads safe and productive.

Why Dewatering Matters for Haul Trucks

Open-pit mines are essentially giant holes in the ground. Groundwater constantly seeps in, and rain adds to the problem. Without effective dewatering:

• Haul roads become unsafe — wet, slippery roads increase stopping distances for 400-ton trucks carrying full loads
• Pit floor stability degrades — saturated ground can't support heavy equipment, leading to sinkholes and equipment loss
• Production drops — trucks slow down or stop entirely when conditions deteriorate, costing thousands per hour in lost productivity

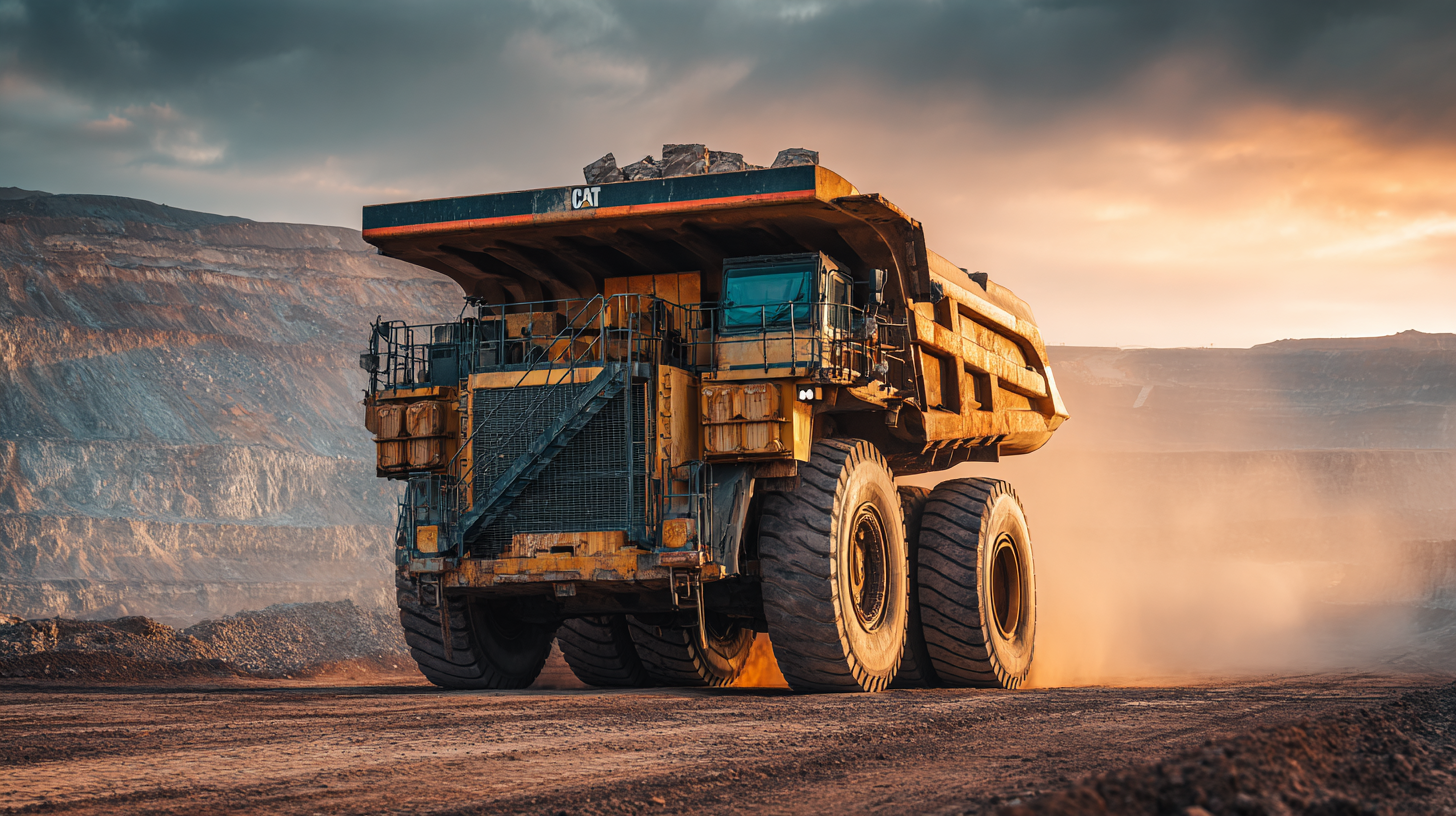

Ultra-class trucks like the Caterpillar 797F rely on pump-supported infrastructure throughout the mine.

Three Critical Pump Applications in Truck-Heavy Mines

1. Pit Dewatering Pumps

Submersible slurry pumps stationed at sumps throughout the pit remove groundwater before it accumulates. These pumps must handle:

• Sand and fine particles suspended in water
• High pH levels from exposed rock
• Abrasive wear from constant sediment flow

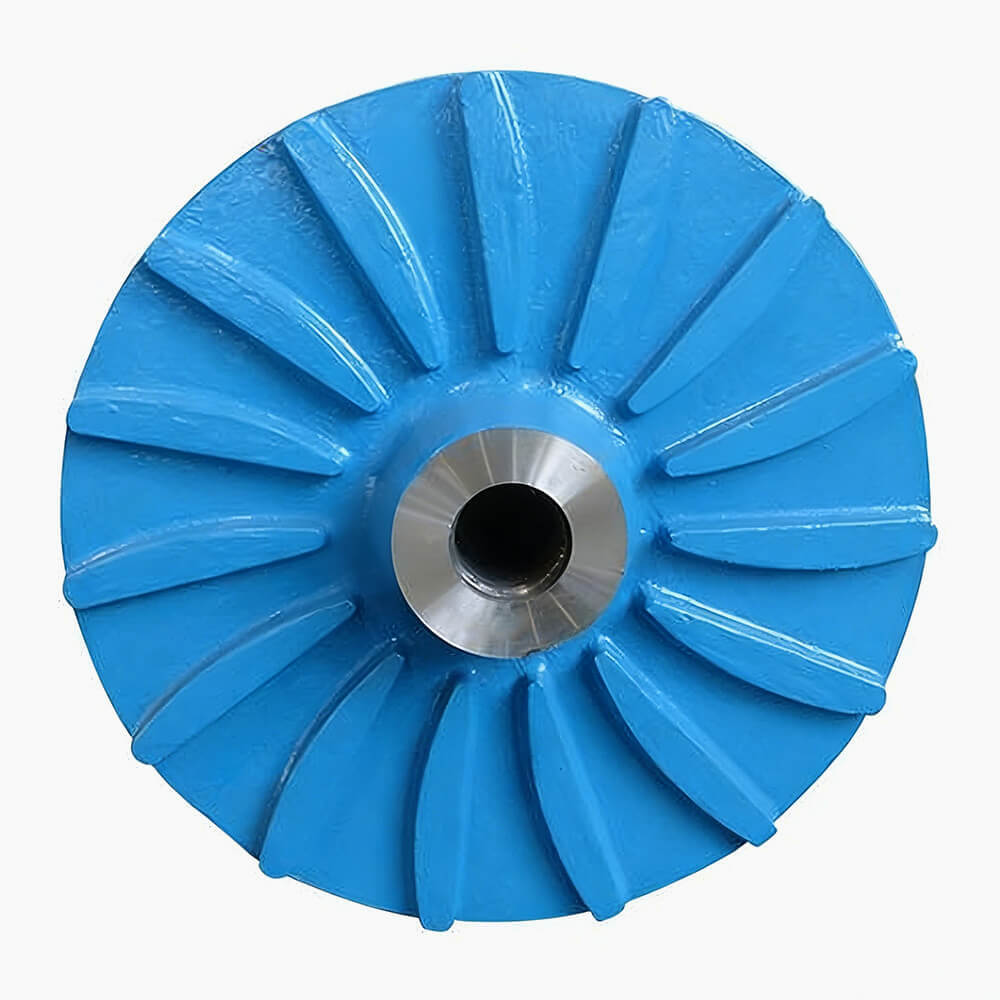

For mines running Caterpillar or Komatsu haul fleets, wear-resistant slurry pump parts — particularly impellers and volute liners — are essential to minimize downtime.

2. Tailings Transport

After ore is processed, the waste material (tailings) must be pumped to storage facilities. Slurry pumps handle the heavy lifting here, moving thick mixtures of water and ground rock through pipelines that can stretch kilometers.

The pump selection for tailings is critical: too small, and the system clogs; too large, and energy costs skyrocket. Most operations use A05 or A49 impeller materials for their excellent balance of wear resistance and cost.

3. Truck Cooling & Wash-Down Systems

Ultra-class haul trucks generate enormous heat. Many operations use water-based cooling systems supported by circulation pumps. Additionally, regular wash-down systems keep radiators and brake components free of dust buildup — a critical maintenance task in dusty pit environments.

Choosing the Right Slurry Pump Parts

Here's what to prioritize when selecting replacement parts:

Component	Recommended Material	Best For
Impeller	A05 (28% Cr White Iron)	General dewatering, moderate abrasion
Volute Liner	A49 (28% Cr-3% Ni)	High-chloride water, corrosive environments
Throatbush	A05 or Rubber (R08)	Fine particle slurry, low impact
Frame Plate	Ductile Iron (standard)	Structural support, moderate wear

Cost Impact: Pump Downtime vs. Truck Downtime

The math is simple but stark: a Caterpillar 797F haul truck costs approximately $50,000–$80,000 per day in lost production when idle. A pump failure that takes 8 hours to fix can cascade into:

• Pit floor flooding → 2–4 days of haul road repairs
• Workforce idle time → $200,000+ in labor costs
• Safety incidents → potential regulatory shutdowns

Reliable pump systems protect the massive capital investment represented by ultra-class mining trucks.

Conclusion

The 400-ton haul trucks get all the glory, but the slurry pumps keeping the pit dry and tailings flowing are what make those trucks possible. For mine operators and maintenance managers, investing in quality pump parts — especially wear-resistant impellers and liners — isn't just about pump performance. It's about protecting the entire operation.

At Pumps & Spare Parts, we supply aftermarket slurry pump parts compatible with Warman, KSB, and Metso pumps used in mining operations worldwide. Our A05 and A49 impellers are specifically designed for the harsh conditions found in open-pit mining.
