Warman Pump Compatible Parts

Aftermarket replacement parts for Warman (Weir Minerals) AH, HH, G, M, L, T, and SP series slurry pumps.

Home› Products› Warman Compatible Parts

Compatible Warman Series

We manufacture parts for the full range of Warman slurry pump series.

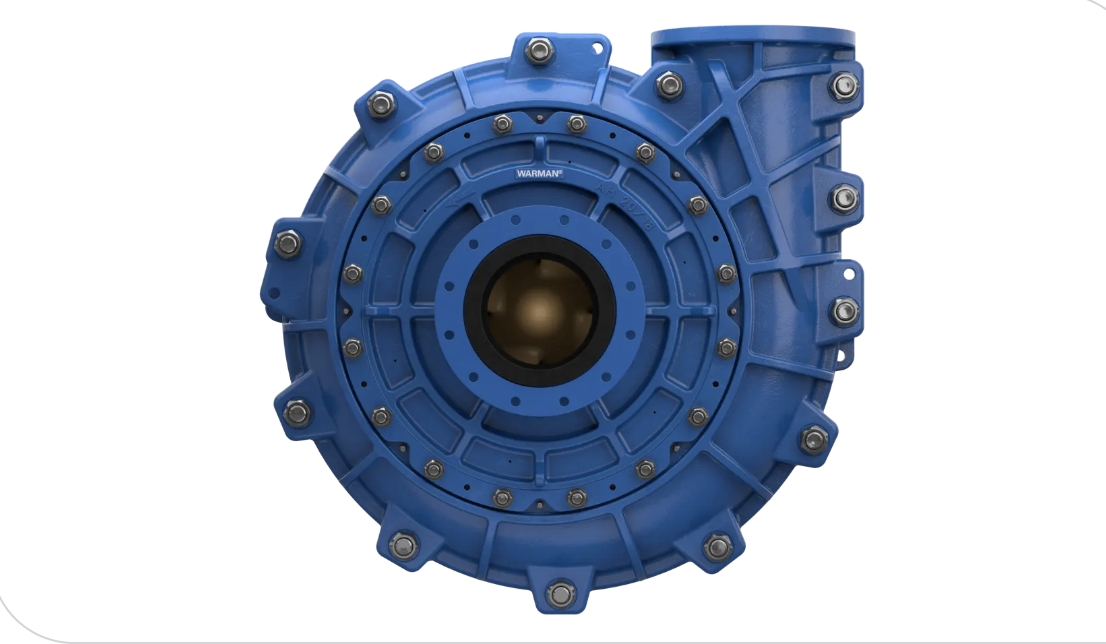

Warman AH heavy-duty slurry pump

Warman® AH® Heavy-duty Slurry Pumps

Warman® AH® heavy-duty centrifugal slurry pumps are designed for the continuous pumping of highly abrasive, dense slurries in processes from hydrocyclone feed to regrind, flotation and tailings.

View Details →

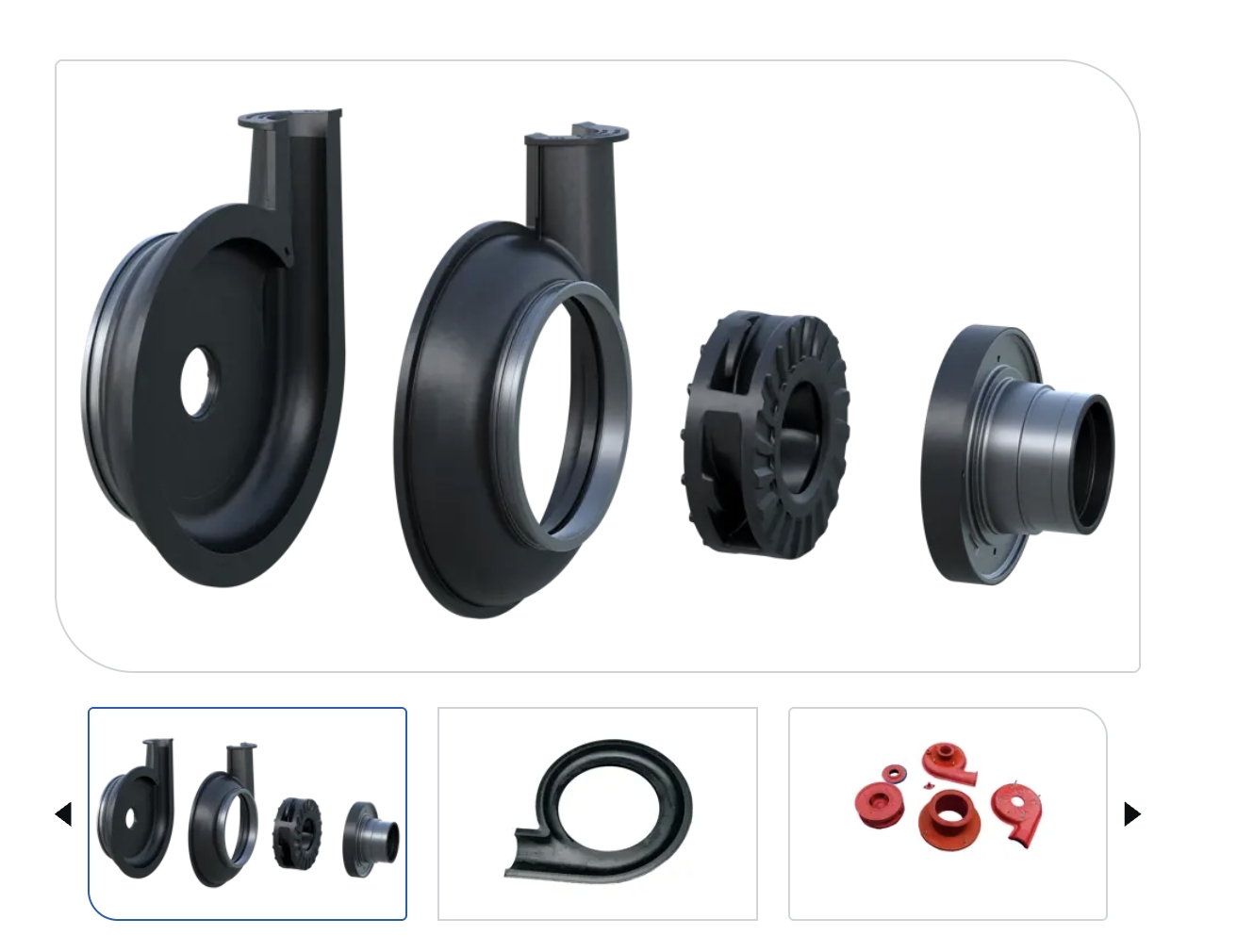

Warman pump parts — impellers, liners, volutes

Warman® Pump Parts — Impellers, Liners & Volutes

Genuine-quality replacement parts for Warman centrifugal pumps. Impellers, volute liners, throatbushes, frame plate liners. Engineered tolerances, certified materials. View Details →

Warman G Series gravel pump parts

Warman G Series — Gravel & Sand Pumps

Large-frame gravel and sand pumps. Designed for high-flow, low-head dredging and tailings applications. Compatible impellers, liners and volutes available.

View Parts →

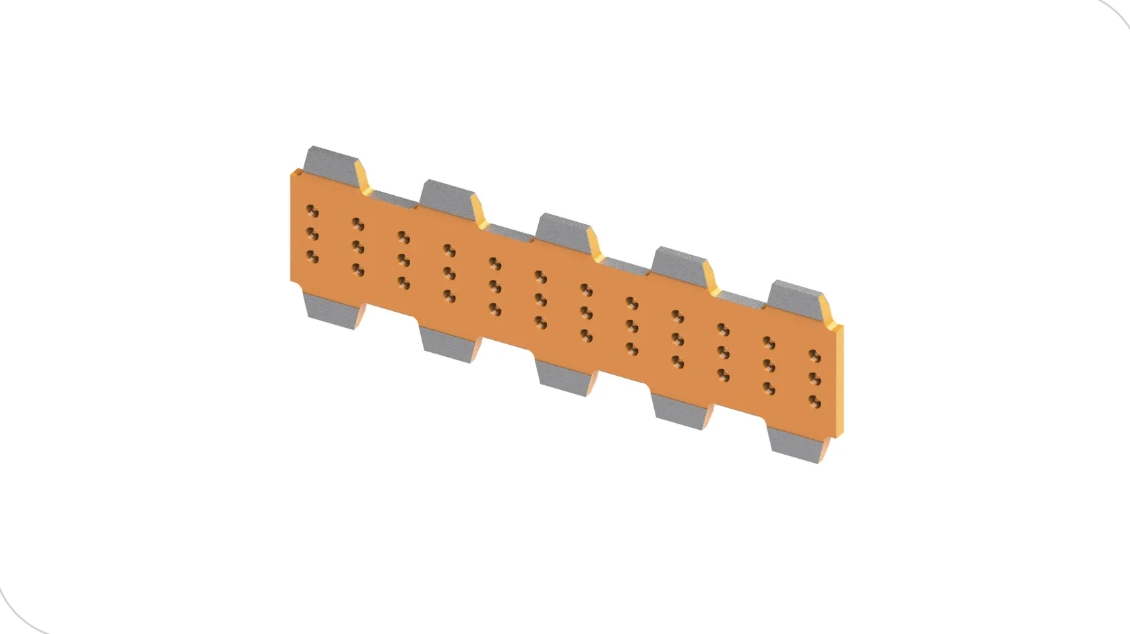

ESCO Bucyrus Blades cutting edge for scrapers

ESCO® Bucyrus Blades™ Cutting Edges

Wide selection of ESCO® Bucyrus Blades™ cutting edges and accessories for scrapers. Standard, heavy-duty and extra heavy-duty versions reduce operating costs and significantly outwear standard OEM versions.

View Details →

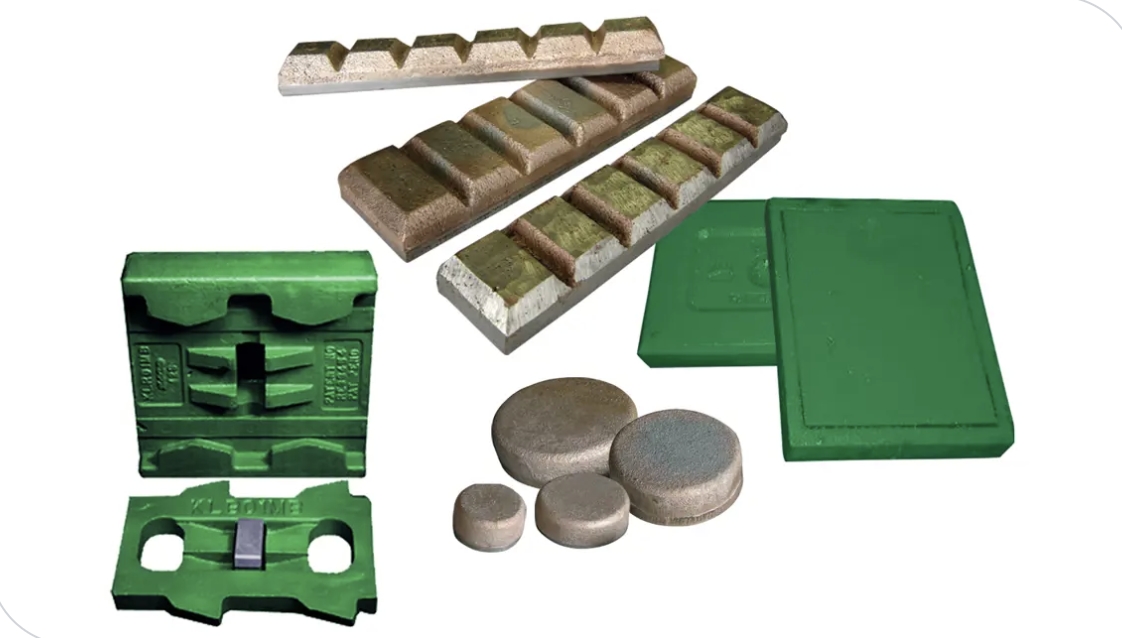

ESCO wear materials for mining and construction

ESCO® Wear Materials

Comprehensive array of ESCO® wear protection packages for buckets and equipment in mining, construction and aggregate markets. Custom-engineered to match the application.

View Details →

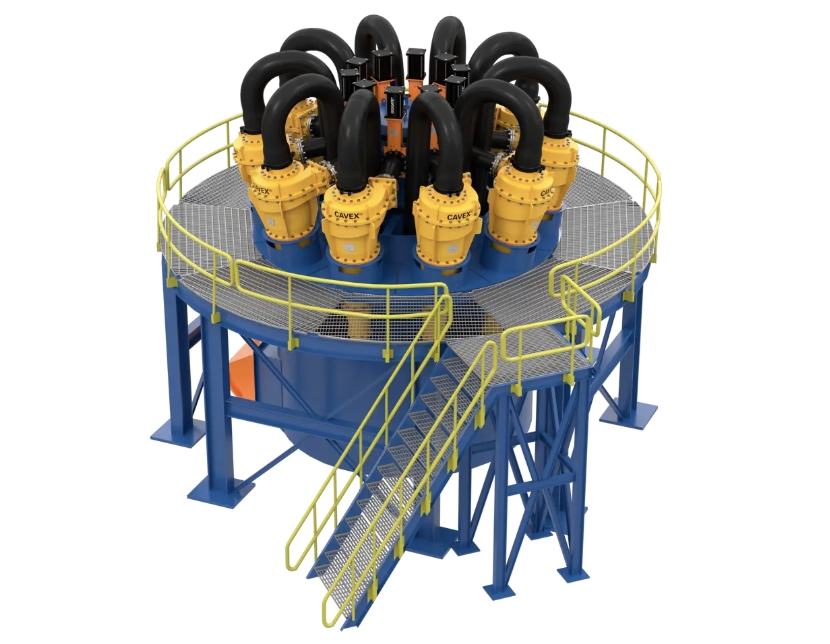

Cavex cyclone cluster for mining classification

Cavex® Cyclone Clusters

Cavex® cyclone canisters cluster multiple hydrocyclones together to increase overall throughput with a significantly reduced footprint. For classification and separation in mineral processing circuits.

View Details →

Cross-Reference Table

Common Warman part numbers and their Coolair Group equivalents. Contact us for parts not listed.

Warman Part No. Description Frame Size Material Our Equivalent
F8126 Impeller AH 1.5/1 B A05 High Chrome CG-AH151-A05
F8149 Impeller AH 2/1.5 A A05 High Chrome CG-AH215-A05
F8163 Impeller AH 3/2 C A05 High Chrome CG-AH320-A05
F8145 Impeller AH 4/3 C A05 High Chrome CG-AH430-A05
F8119 Impeller AH 6/4 D A05 High Chrome CG-AH640-A05
F8098 Impeller AH 8/6 E A05 High Chrome CG-AH860-A05
F8089 Impeller AH 10/8 F A05 High Chrome CG-AH1080-A05
F8080 Impeller AH 12/10 ST A05 High Chrome CG-AH1210-A05

Parts Available for Warman Pumps

We supply the complete wet-end and power-end replacement parts for Warman pumps.

Part Category Materials Coverage
Impellers A05, A07, R08, R26, R33 All AH, HH, G, M frame sizes
Volute Liners A05, R08 All AH, HH frame sizes
Frame Plate Liners A05, R08 All AH, HH frame sizes
Throatbush A05, R08 All AH frame sizes
Shaft Sleeves 4140 Steel, Duplex SS All frame sizes
Expeller A05, D21 All AH frame sizes
Seal Rings Rubber, Polyurethane All frame sizes
O-Ring Kits Viton, EPDM, NBR Complete frame kits

Can't Find Your Warman Part Number?

Send us your pump frame number or the old part — we'll cross-reference and provide a quote within 24 hours.

Request Cross-Reference →
